UK8166A
Category:
Keywords:
- Product Description
-
- Commodity name: UK8166A
- 使用环境: Wireless monitoring,tour guide
- 产品系列: Wireless monitoring. Guide system
Applicable scenarios: Professional stages, wireless in-ear monitors for singers, band monitoring systems, music concerts, rehearsal performances, and other similar settings.

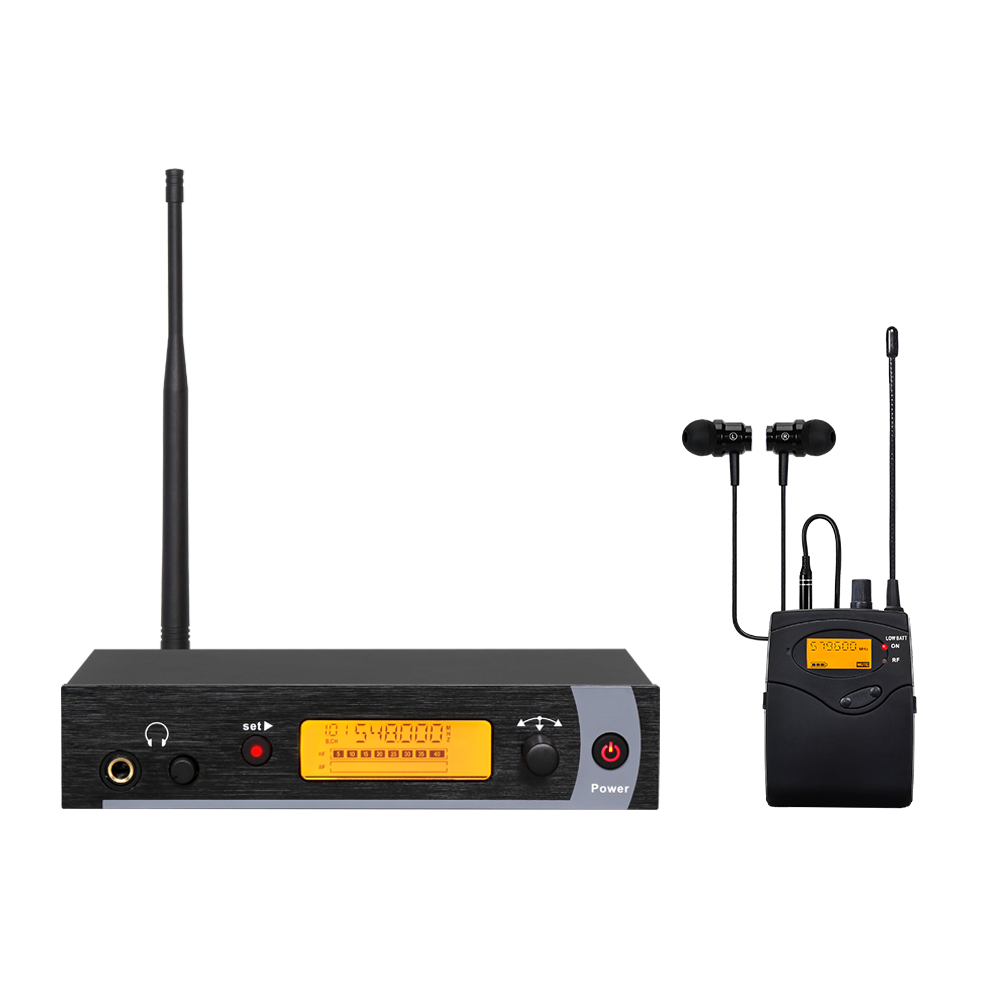

8166A/8168A Single-Channel Monitoring System
Applicable scenarios: Professional stages, wireless in-ear monitors for singers, band monitoring systems, music concerts, rehearsal and performance monitoring devices, and more.
UHF band PLL locking allows operation across 40 system-preset frequencies within the 16MHz range.
Widely applicable and compatible with multiple devices.
Launcher technical specifications:
Oscillation Mode: PLL Phase-Locked Frequency Synthesis
RF stability: ±0.005%
Bandwidth: UHF 564.000–580.000 MHz, UHF 664.000–680.000 MHz
Preset Channels: 40 preset channels, each assigned to one of 4 groups.
Comprehensive frequency response: 50Hz–15kHz ±3dB
Radiated output power: 100 mW (50 Ω)
Audio input: XLR and φ6.3mm combo jack
Headphone output: 6.3mm stereo jack, with adjustable volume
Headphone load impedance: ≥16Ω
Current consumption: DC 12V / 300mA
Antenna: Detachable SMA Antenna
Receiver technical specifications:
Oscillation Mode: PLL Phase-Locked Frequency Synthesis
RF stability: ±0.005%
Bandwidth: UHF 564.000–580.000 MHz, UHF 664.000–680.000 MHz
Preset Channels: 40 preset channels, each assigned to one of 4 groups.
Comprehensive frequency response: 80Hz–15kHz ±3dB
Output power (32Ω): 2 × 35 mW @ 1 kHz
Headphone load impedance: ≥16Ω
Current consumption: DC 3V / 120mA (when used at moderate volume levels)
